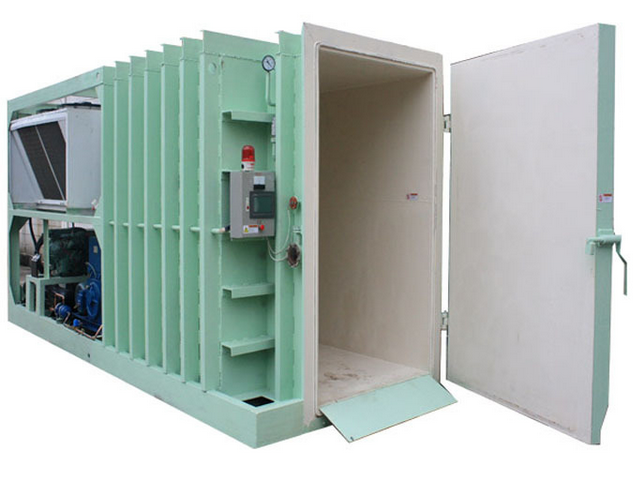

Vacuum Cooler (Swing Door) |

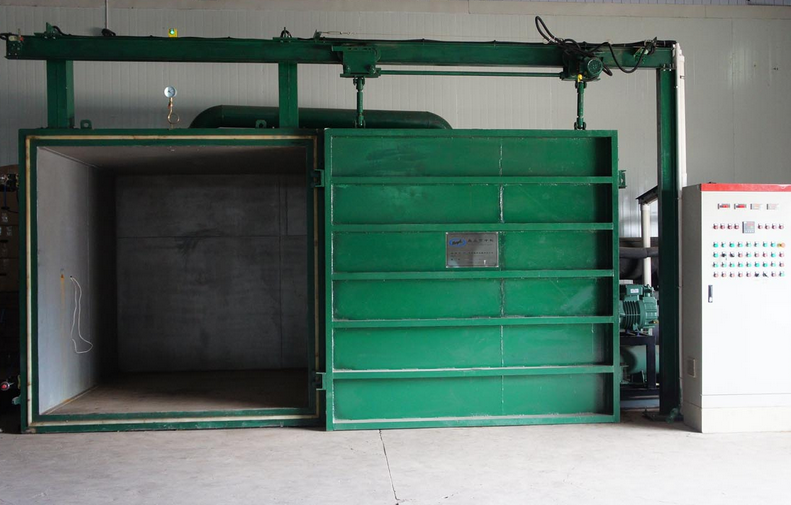

Vacuum cooler (Sliding door) |

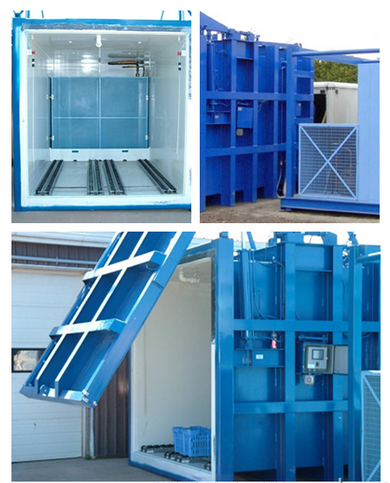

Vacuum cooler (Upwards lifting
door)
|
 |
 |
 |
|

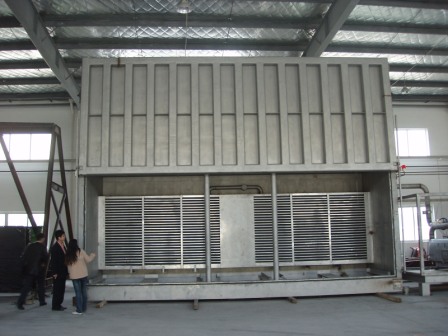

Tunnel Vacuum cooling machine |

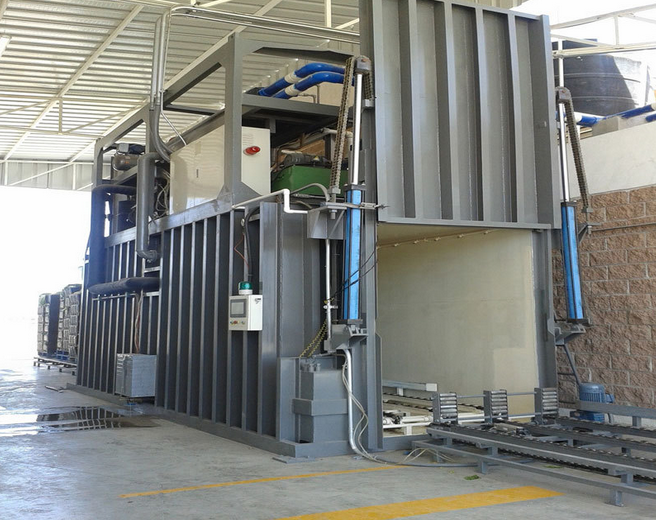

Vacuum cooler (Vertical lift up
door)
|

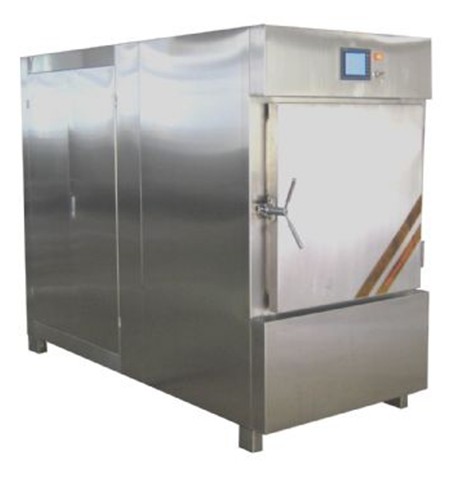

Vacuum cooler for cooked food |
Vacuum cooling is a batch process whereby moist products containing free water are cooled by evaporation of moisture under vacuum, which can be applied to special foods and in particular vegetables.
The technology is based on the phenomenon that water starts boiling at lower temperatures as the pressure decreases. In the vacuum cooler the pressure is reduced to a level where water starts boiling at 2 ⁰C. The boiling process takes away heat from the product. As an effect, products can be cooled down through and through to 1 or 2 ⁰C within 20 – 30 minutes. Even (micro-perforated) packed products can easily be cooled this way!
The quick and uniform cooling (the surface and core of the vegetable reach exact the same temperature after vacuum cooling!) results in a substantially longer shelf life of your produce. At the same time you can save on energy costs, as the vacuum cooling process is much more (cost) effective than traditional cooling technologies.

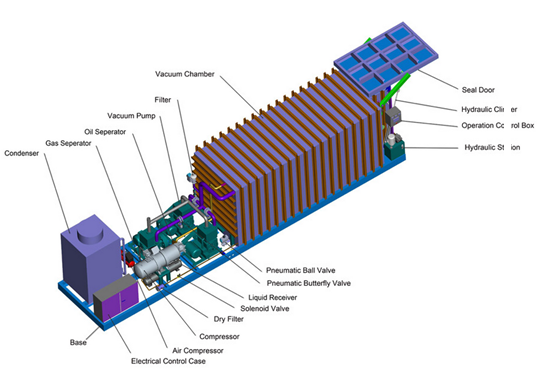

Main components
Our standard range consists of models for 1 up to 10 pallets, and produce weight ranging from 250 to 4,000 kg. The number of pallets defines the chamber dimensions, and the number of vacuum pumps needed to create the vacuum.
|
Product Range |
|
|
Inside Dimensions |
Vacuum Pump Power (Kg) |
Product weight (Kg) |
Cooling Capacity(Kw) |
Compressor Power (Kg) |
Total Power (Kw) |
|
1 Pallet |
1400*1400*2200 |
8 |
300-500 |
57 |
25 |
36 |
|
2 Pallets |
2700*1400*2200 |
15 |
300-500 700-1000 |
57 77 |
25 33 |
44 52 |
|
3 Pallets |
3500*1400*2200 |
15 |
700-1000 1100-1500 |
77 118 |
33 53 |
52 73 |
|
4 Pallets |
4500*1400*2200 |
15 15 15 |
700-1000 1100-1500 1500-2000 |
77 118 163 |
33 53 59 |
52 73 79 |
|
6 Pallets |
6500*1400*2200 4000*1800*2200 |
23 23 23 |
1100-1500 1500-2000 2200-3000 |
118 163 224 |
53 59 82 |
73 87 110 |
|
8 Pallest |
5300*1800*2200 5300*2200*2200 (Flat Rack, only USA) |
30 |
1500-2000 2200-3000 3000-4000 |
163 224 293 |
59 82 102 |
94 117 137 |
|
2 Aircraft Pallets |
7000*2900*3350 |
45 |
2200-3000 |
224 |
82 |
132 |
Options:
1.Skid Options: Whole skid&Split type
2.Function Options: Hydro system&Water spray system
3.Door Options: Manual Door/Horizontal Sliding Door/ Upwards Lifting Door/ Vertical Lifting Door
